That sinking feeling when you turn the key and hear only silence—it’s happened to nearly every rider. A dead motorcycle battery doesn’t mean you’re stranded if you know how to jumpstart a motorcycle with a jump box properly. Unlike car jump starters, motorcycle electrical systems are far more delicate, requiring specialized techniques to avoid frying your bike’s sensitive electronics. This guide delivers the exact procedure professional mechanics use, including critical safety steps most riders skip and troubleshooting for when your first attempt fails.

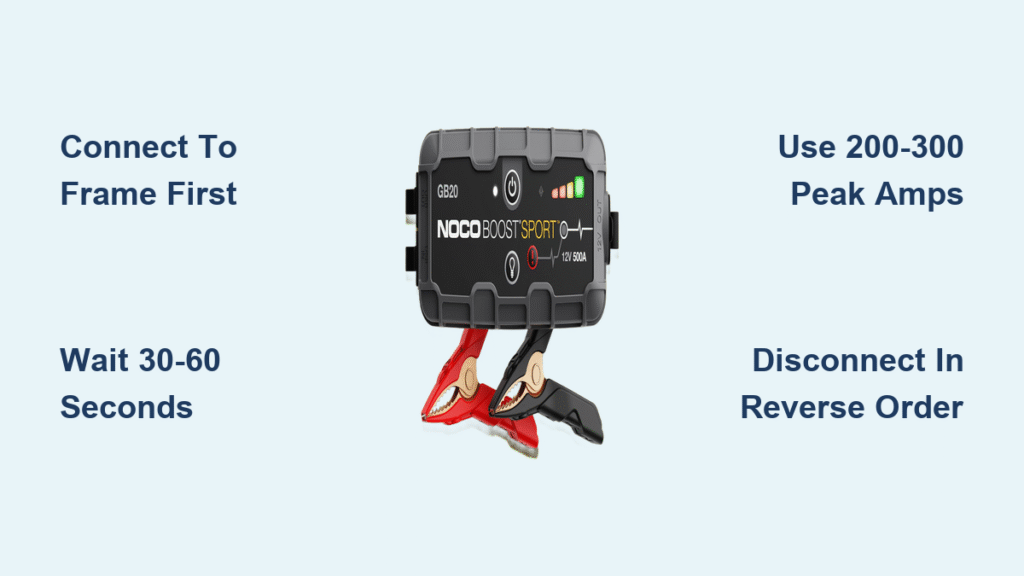

Selecting the Right Jump Box for Your Motorcycle
Minimum Power Requirements for Motorcycle Batteries
Your motorcycle needs a jump box with 200-300 peak amps minimum—significantly less than cars require. Check your bike’s cold cranking amps (CCA) specification in the owner’s manual, typically between 80-270 CCA depending on engine size. Large V-twin cruisers often need 400+ peak amps, while smaller sport bikes function well with 250 amps. Using an automotive jump starter (1000+ amps) risks destroying your ECU through voltage spikes.
Essential Safety Features You Can’t Skip
Choose a jump box with these non-negotiable protections:
– Reverse polarity protection that automatically shuts off if clamps touch wrong terminals
– Spark suppression circuitry to prevent dangerous arcing near battery gases
– Overload protection that activates at 120°C internal temperature
– Short circuit protection with instantaneous electronic cutoff
Physical Compatibility for Tight Spaces
Motorcycle batteries live in cramped quarters, so select a jump box with:
– Cables at least 12 inches long for maneuverability
– Clamps that open 0.5-0.75 inches to fit motorcycle terminals
– Lithium-ion construction weighing 0.5-2.5 pounds for easy storage
– IP65 weather resistance rating for rain or road spray
Critical Safety Checks Before Connecting
Battery Condition: When to Jump vs. Replace
Stop immediately if you see these warning signs:
– Swollen or deformed battery case indicating internal damage
– Terminal corrosion exceeding 2mm thickness
– Voltage below 10.5V with ignition off (use a multimeter)
– Sulfur/rotten egg smell from leaking electrolyte
– Battery age over 3-4 years with declining performance
Never attempt jump starting if the battery is frozen (case bulging or below 32°F) or has visible cracks with leaking fluid.
Motorcycle System Readiness Checklist
Before touching any cables, verify:
– Transmission is in neutral (most bikes won’t start in gear)
– Kill switch is set to “run” position
– Side stand is fully raised (interlock switch engaged)
– Clutch lever is pulled in for manual transmissions
– Fuel level is adequate to prevent repeated cranking
Exact Connection Sequence to Avoid Damage
Pre-Connection Preparation Steps
- Power down accessories: Turn off heated grips, GPS, and auxiliary lights
- Access the battery: Remove seat or side panel per your owner’s manual
- Clean terminals: Use a wire brush to remove corrosion from both terminals
- Identify polarity: Locate positive (+) terminal (usually red cover/marking)
- Position jump box: Place on stable surface away from moving parts
Why Frame Connection Comes Before Negative Terminal
The most critical safety step most riders get wrong: Always connect to the motorcycle frame first, not the negative battery terminal. Batteries emit explosive hydrogen gas during charging—sparks from connecting clamps directly to the negative terminal can cause catastrophic explosions.
- Connect positive (red) clamp: Firmly attach to positive battery terminal
- Connect negative (black) clamp: Secure to clean, unpainted metal on engine block or frame (6-12 inches from battery)
- Verify connections: Tug test each clamp and ensure cables clear drive chains
Starting Procedure: Timing Matters
Critical Waiting Period Before Cranking
After connecting, wait 30-60 seconds before attempting to start. This allows the jump box capacitors to stabilize your motorcycle’s electrical system. Skipping this step causes voltage fluctuations that can damage sensitive electronics.
Proper Starting Sequence
- Activate jump box: Press power button (most auto-activate under load)
- Turn ignition on: Rotate key to “on” position
- Crank for 5 seconds maximum: Longer attempts overheat starter motors
- Wait 30 seconds between attempts: Prevents jump box overheating
- Maximum 3-4 attempts: More indicates deeper electrical issues
Immediate Actions After Successful Start
Post-Start Disconnection Protocol
Let your motorcycle idle at 1500-2000 RPM for 2-3 minutes before disconnecting. Remove clamps in reverse order of connection:
1. Remove negative clamp from frame first
2. Remove positive clamp from battery terminal second
3. Replace terminal covers and any removed panels immediately
Charging System Verification
At 3000 RPM, check battery voltage with a multimeter—it should read 13.5-14.5V. If below 13V, your charging system needs professional diagnosis. Ride for 30-60 minutes at highway speeds to partially recharge, but connect a battery tender for 4-8 hours minimum after your ride.
Troubleshooting Failed Jump Attempts
No Crank/No Click Solutions
When pressing the starter button yields silence:
– Check main fuse: Inspect the 30A fuse near the battery
– Test clutch switch: Temporarily bypass by connecting the two switch wires
– Verify side stand switch: Ensure it’s fully retracted or bypass carefully
– Confirm jump box charge: Must show 75%+ capacity (low charge causes failure)
Slow Cranking Diagnosis
If the engine turns over sluggishly:
– Measure voltage drop: Jump box should stay above 11V under load
– Check cable temperature: Warm cables indicate poor connections
– Inspect for mechanical issues: Hydrolock or seized engine components
– Clear flooded cylinders: Remove spark plug and crank to expel excess fuel
Advanced Techniques for Difficult Starts
Reviving a Completely Dead Battery
When battery voltage reads 0V:
1. Connect jump box but do not attempt starting
2. Wait 5-10 minutes for the jump box to “wake up” the battery
3. Check voltage—if still below 10V after 10 minutes, replace the battery
High-Compression Engine Starting Tips
Large single-cylinder bikes often require special handling:
– Use a jump box with 400+ peak amps for adequate cranking power
– Engage decompression lever if equipped (common on adventure bikes)
– Have a helper push start in 2nd gear as backup if jump box fails
Emergency Alternatives Without a Jump Box
Safe Push Start Method
Requirements: Slight downhill or strong pusher (170+ lbs)
- Turn ignition on with clutch pulled in
- Shift into 2nd gear
- Push to 5-10 mph speed
- Release clutch quickly while giving 1/4 throttle
- Pull clutch back in when engine catches
Car Battery Jumping (Extreme Caution)
Only attempt with car engine OFF:
– Connect positive to positive terminals first
– Connect negative to motorcycle frame (never battery)
– Limit contact to 1-2 seconds maximum
– Never connect with car engine running—voltage spikes destroy motorcycle electronics
Long-Term Battery Health After Jump Starting
Critical Post-Jump Charging Protocol
Connect a smart battery tender for 4-8 hours minimum after jump starting. Ride for 30+ minutes at highway speeds to generate meaningful charge—short trips won’t replenish what you’ve drained. Check voltage after 20 minutes riding; it should read 13.8-14.2V indicating proper charging.
Preventive Maintenance Schedule
- Monthly: Check battery voltage (12.6V minimum = fully charged)
- Quarterly: Clean terminals and apply dielectric grease
- Annually: Perform load test at auto parts store
- Every 2-3 years: Replace battery regardless of condition
Jump Box Maintenance Essentials
Store your jump box at 40-60% charge in a 50-70°F environment. Perform a full discharge/charge cycle every 30-60 days to maintain capacity. Test cranking amps annually under load to ensure it’s ready when you need it.
Final Note: A quality jump box used correctly can rescue your ride in minutes, but repeated dead batteries signal underlying electrical issues needing professional diagnosis. Always prioritize safety over speed—taking 5 extra minutes to verify connections prevents thousands in ECU repairs. Keep your jump box charged and accessible, and you’ll never miss another ride due to a dead battery.
