Your car battery dies with a sickening click as you turn the key. Headlights fade to nothing, and you’re stranded in a supermarket parking lot as dusk approaches. A Scatach jump starter can rescue you in under five minutes—if you know exactly how to use Scatach jump starter units without risking damage or injury. This isn’t just about attaching clamps; it’s about understanding the precise sequence that prevents sparks near explosive battery gases while delivering maximum power. Follow these field-tested procedures to transform your compact Scatach unit from a dashboard decoration into a reliable lifeline during roadside emergencies.
Unlike traditional jumper cables requiring another vehicle, your Scatach jump starter packs 400-2,000 peak amps in a device smaller than a lunchbox. But improper use can fry electronics or trigger dangerous short circuits. I’ve seen mechanics replace $1,200 engine control modules because someone connected the negative clamp directly to a dead battery’s terminal. This guide cuts through the confusion with manufacturer-approved techniques drawn straight from Scatach’s engineering specifications. You’ll learn why grounding to the engine block saves lives, how to diagnose why your engine won’t crank, and cold-weather tricks that work when standard methods fail.
First Charge and Storage Protocol
Skip this step and your jump starter may fail when you need it most. Before your first emergency use, plug the Scatach into its wall adapter and charge until all LED indicators glow solid—typically 4-5 hours for the initial charge cycle. This critical step calibrates the lithium-ion battery management system, ensuring full capacity during actual jumps. Never store the unit fully depleted; maintain 40-60% charge if unused beyond 30 days to prevent battery degradation. Keep it in a climate-controlled space between 32-80°F (0-27°C), never in glove compartments where summer heat exceeds 140°F and cooks the battery.
Pro tip: During charging, locate your vehicle’s battery and practice identifying the positive terminal under daylight conditions. This muscle memory eliminates frantic fumbling during nighttime emergencies.
Non-Negotiable Safety Procedures
Battery jump-starting involves 500+ amps of explosive potential. These safety rules prevent fires, electrocution, and vehicle damage:
Never let red and black clamps touch—metal contact creates violent sparks capable of melting copper. Remove all metal jewelry before handling clamps; a wedding ring bridging terminals could cause severe burns. Work exclusively in dry conditions—even light rain increases electrocution risk near 12V systems. Always verify your vehicle uses a 12V system (nearly all gasoline cars and light trucks do) and inspect the dead battery for cracks or leaks. If you see white crust or smell sulfur, call a tow—never jump a physically damaged battery.
Pre-Jump 60-Second Checklist
Prevent wasted effort with this critical inspection:
- Confirm 50%+ charge level on the Scatach’s battery indicator (below this threshold, it lacks cranking power)
- Examine cables for cuts or exposed wires—frayed insulation risks short circuits
- Scrub corroded terminals with a wire brush until shiny metal appears
- Unplug all accessories like phone chargers that drain power during cranking
- Position the unit on stable ground ensuring cables reach without tension

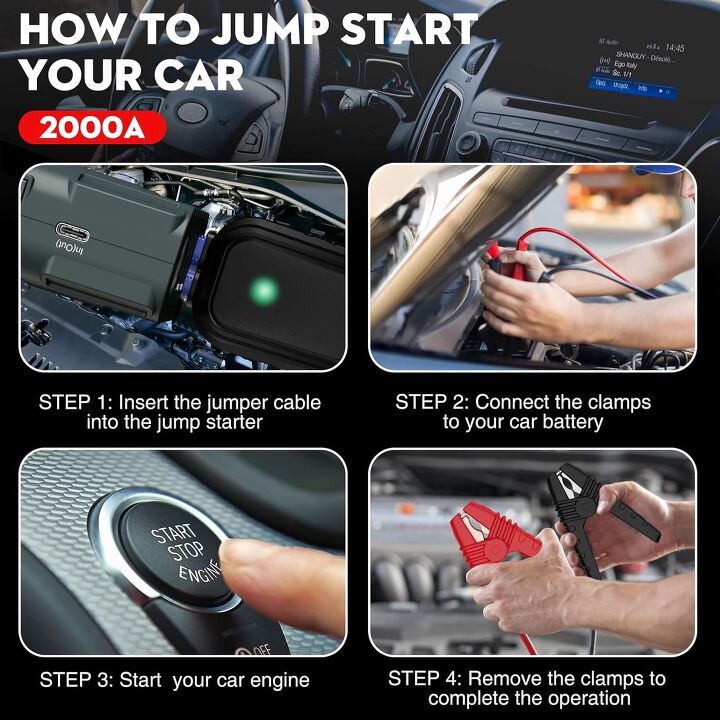

Correct Clamp Connection Sequence
Positive Terminal First
Attach the red clamp to the positive (+) battery terminal—identified by a red cover or “+” symbol. Press firmly until the clamp jaws bite through corrosion into bare metal. Gently tug to confirm solid contact; a loose connection causes sparking and voltage drop.
Ground Connection to Engine Block
Snap the black clamp onto unpainted metal of the engine block or chassis—12-18 inches from the battery. This critical step routes current away from explosive hydrogen gas emitted by batteries. Never connect black to the negative battery terminal; this risks igniting gases and damaging sensitive electronics.
Verify Power Status
Check the Scatach’s indicator lights before cranking. A solid green or blue means ready for starting. Flashing red indicates poor contact—reposition both clamps immediately. Test voltage across clamps with a multimeter if available; it must read 12.6-13.2V for reliable starting.
Engine Cranking Protocol
- Activate the jump starter via its power button (if equipped) within 30 seconds of connection
- Turn ignition to “start” position—crank for 3-5 seconds maximum
- If engine doesn’t catch, wait 2-3 minutes before retrying to prevent unit overheating
- After successful start, let engine idle 2-3 minutes before disconnecting to stabilize charging
Expert note: Slow cranking indicates either a severely depleted jump starter (recharge immediately) or a battery beyond revival (replace if over 3-4 years old).
Safe Disconnection Order
- Remove black clamp from engine block first—breaking the ground circuit safely
- Remove red clamp from positive terminal second—eliminating spark risk
- Store clamps with metal ends separated to prevent accidental shorting
- Recharge the Scatach within 24 hours to maintain lithium-ion battery health
USB Power Bank Operation
Your Scatach doubles as an emergency power source for devices. For smartphones, use the standard USB-A port (5V/2.4A). Quick Charge 3.0 ports deliver variable voltage (5-12V) for compatible phones, while USB-C PD ports (5-20V) recharge laptops. Crucially, you can power devices while maintaining jump capability—ideal for keeping GPS running during long breakdowns.
Emergency Lighting Activation
Double-press the power button for the 200-lumen flashlight (100-meter beam range). Triple-press triggers the SOS strobe pattern for nighttime visibility. Hold the button for 3 seconds to activate the red emergency beacon—essential when changing tires on dark highways.
Troubleshooting Failed Starts
Clamps Show Zero Power
Recharge if charge level drops below 25%. Clean terminals thoroughly with a wire brush. Reset the unit by holding the power button for 10 seconds. Verify voltage with a multimeter—no reading means internal failure requiring replacement.
Engine Won’t Crank
Check for parasitic drains like dome lights left on. Inspect battery cables for looseness. Attempt “boost mode” if your Scatach has 300+ peak amps. If cranking remains slow, the dead battery likely needs replacement—especially if over 3-4 years old.
Unit Overheats During Use
Allow 10-15 minutes cooling between attempts. Never use above 100°F (38°C) ambient temperature. Ensure 2+ inches of clearance around vents. Swelling or smoke means immediate replacement—do not reuse.
Match Power to Your Engine
Gasoline engines require:
– 4-cylinder: 200-400 peak amps
– 6-cylinder: 400-600 peak amps
– 8-cylinder: 600-800+ peak amps
Diesel engines need 50% more power:
– Light-duty: 700-1,000 peak amps
– Heavy-duty: 1,500-2,000+ peak amps
Cold weather tip: Below freezing, increase required amps by 25-50%—store your Scatach indoors overnight to maintain chemical reactivity.
Hybrid and EV Jump-Starting
Locate the 12V auxiliary battery—often hidden in trunk fuse boxes, not under the hood. Never attempt to jump the main traction battery; this requires dealer equipment. Consult your vehicle manual for designated jump points, typically marked with yellow covers. Always connect negative to chassis ground, never the hybrid battery’s negative terminal.
Long-Term Maintenance Schedule
Monthly: Check charge level; top off to 100% if below 75%. Quarterly: Perform a full discharge/recharge cycle to recalibrate the battery gauge. Annually: Inspect cables for insulation cracks and clamp spring tension. Replace immediately if capacity drops below 70% of original rating, the unit swells, or it won’t hold charge beyond a week. Properly maintained Scatach units last 2-3 years—don’t gamble with expired equipment.
Your Scatach jump starter is now a reliable roadside ally when you follow these precise procedures. Practice the connection sequence in your driveway once a season so muscle memory takes over during real emergencies. Keep it charged between 75-100%, store it in your vehicle’s cabin (not trunk) for cold-weather readiness, and replace it proactively every 2-3 years. With these techniques, you’ll never pay for a tow truck again—just flip the power button, crank your engine, and drive to safety knowing exactly how to use Scatach jump starter technology correctly.
